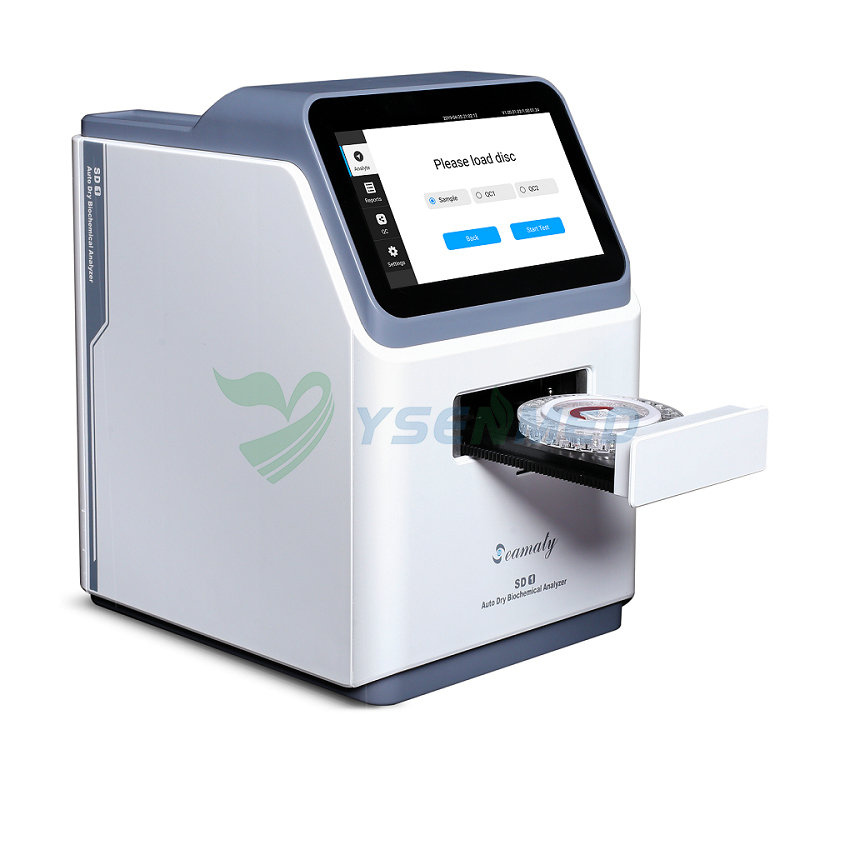

Equipped with the latest technology, we have invented a state-of-the-art automatic biochemical analyzer YSTE-SD1. This portable analyzer can provide faster, easier, more accurate medical diagnosis with less maintenance and micro sample volume.
Utilizing cloud computing, YSTE-SD1 can help the operators to make medical decisions remotely. Built-in centrifuge, QR code , real-time quality control. The test results will be automatically printed after 12 minutes.
The analyzer help operators automatically monitor conditions inside the machine.
Sample Type Anti-coagulation whole blood, serum, plasma
Sample Volume 90-120 μl
Bar Code QR Code
Testing Time 12 minutes/sample
Testing Principle Absorption spectroscopy，transmission turbidimetry
Testing Method End point, kinetic, fixed time, turbidmetry etc
Resolution 0.001 Abs
Cross Contamination 0
QC & Calibrate IQC Intelligent QC
Working Condition Temperature:10-30℃Humidity: 30%-70%
Light Source 120v/20w, halogen tungsten lamp’s lifespan is over 2500 hours
Power Supply AC220V, 50Hz
Power Rating 120VA
After the filter spectral, 8 wavelength synchronous detection: 340,405,450,505,546,600,630,850nm
Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice
Storage 500,000 results
Printer Built-in thermal printer
Connectors 4 USB ports, 1 LAN port
