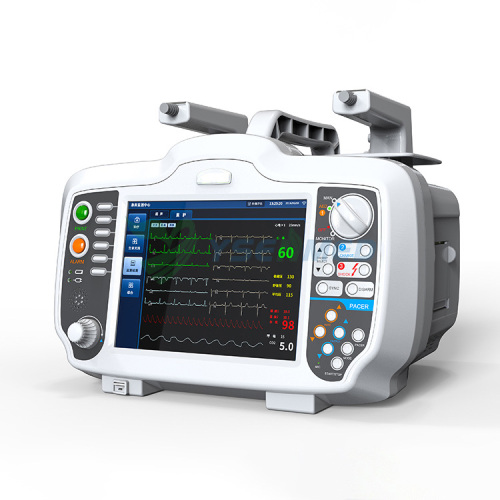

Medical Portable Biphasic Automatic External Defibrillator Monitor YS-DM7000

Model: YS-DM7000
YS-DM7000 is a defibrillation device, which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).
  • ModelYS-DM7000
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)

    Specifications
    Screen Type: 7 inch High-resolution display
    Waveform: Biphasic
    Charge Time: Less than 7 seconds
    YS-DM7000 is a defibrillation device, which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).
    Display
    Screen Type: High-resolution display
    Screen Size: 7 inches(17.7 cm) diagonally
    Sweep Speed: 25mm/sec
    Information: Heart Rate, Lead/Pads, Alarm On/Off, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.
    Defibrillator
    Waveform: Biphasic
    Charge Time: Less than 7 seconds with a new fully charged battery.
    Energy Display: Monitor display indicates both selected and delivered energy.
    Charge Prompt Type: Voice and visual prompts.
    Electrode Impedance Measurement Range: 0-250 ohms.
    ECG Monitoring
    Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
    Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.
    ECG Size: 0.25, 0.5, 1, 1.5, 2, 4 cm/mV diplay on monitor.
    Heart Rate: 20-300BPM.
    Heart Rate Alarm: On/Off displayed on monitor, user-selectable.
    Smart Alarms: Beeper/voice prompts indicate shockable rhythm.
    Battary
    Type: Rechargeable, Ni-MH battery, 12V.
    Operating Time: For a new, fully charged battery: 60 defibrillator discharges at maximum energy, or 3 hours minimum of continuous ECG monitoring. Additional parameters will effect operating time with different functions.
    SpO2 Module
    Measurement Range: 30~100%, ±2% between 80%~90%, others ±5%
    Alarm Range: User set high limit and low limit.
    Alarm Accuracy: ±10% within setting values.
    Alarm time Accuracy: less than 12 sec.
    Recorder
    Paper: 50mm thermal.
    Speed: 12.5mm/sec, 25mm/sec, 50mm/sec. User-selectable 6-second delay.
    Printing Method: High-resolution, thermal print head.
    Print-out Modes: Manual or automatic, user-configurable.
    On/Off Control: Front panel and paddle.
    Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.
    AED Mode
    AED Function: Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts.
    Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV, ventricular tachycardia with rates >=140bpm, and QRS complex wave duration >=140ms.
    Charge Control:  Control on device front panel, press key on paddle.
    Prompts:  Voice and visual prompts.
    Manual Mode
    Energy Selection: Selectable at 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
    Synchronized Mode: Synchronizes defibrillator pulse to patient’s R-wave. ”SYNC” message displayed on monitor.
