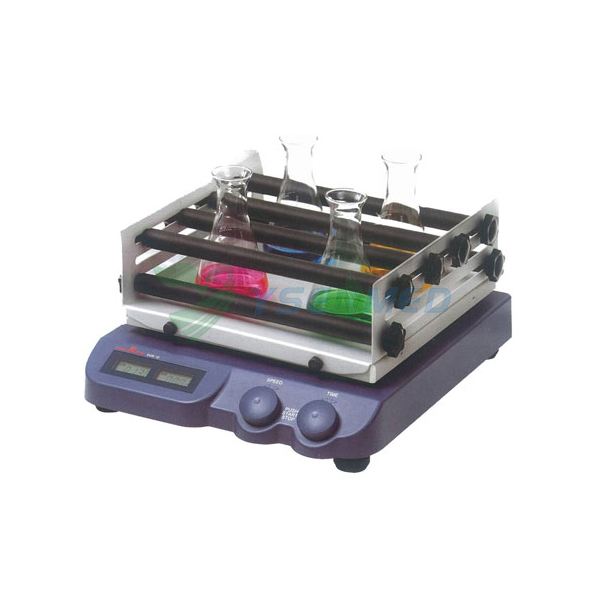

With different types of fixing clips, it can carry out the mixing and shaking for vessels of differentshape and size.
Two operation methods for choice: circling and reciprocating.
Compact structure. With BLDCM (Brushless DC Motor), the equipment can run smoothly with littlenoise for long
period. LCD with backlight can display the current speed, time and operation mode, convenient for readingand setting.
Precise digital time and speed setting can easily carry out the continuous operation mode.
Safe operating protection function adopted.
Maximum load reaches 7.5KG.
Flatbed working plate(with silicagel pad)
Main Technical Data:
Operation method: Circling and reciprocating
Shaker diameter: 10mm
Maximum loading weight (incl. Fixing clips): 7.5kg
Equipment input power: 35W
Motor output power: 10W
Motor type: BLDC
Speed display: LCD
Timer display: LCD
Time setting range: 1-19h59min
Operation mode: Timing/Continuous
Shaking table lock: Yes
Dimensions (W*H*D): 420*360*100mm
Permissible ambient temperature: 5-50℃
Permissible relative moisture: 80%
Protection class according to DIN EN 60529: IP21
RS 232 interface: Yes
Analog output: Yes
(Accessories are not included, please order separately.)
