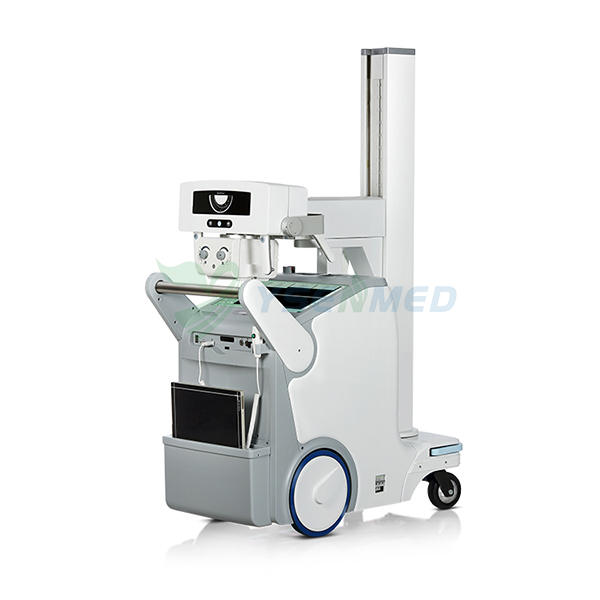

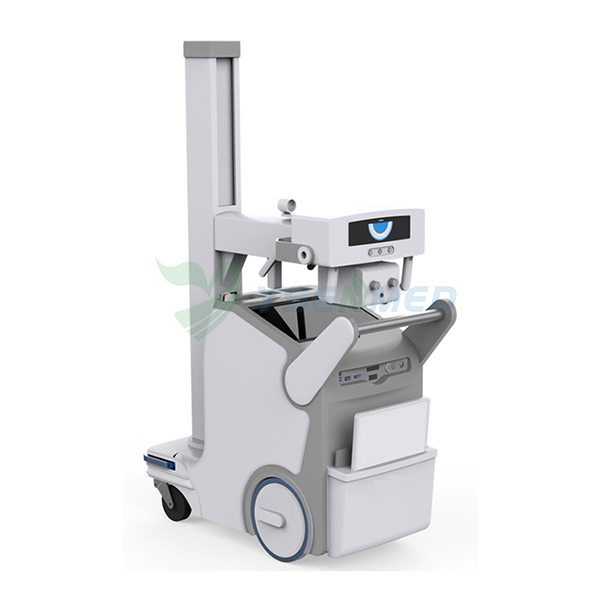

50kw 630ma Mobile Digital X Ray Equipment YSX500MG

Model: YSX500MG
50kW high power & high voltage generator, large heat capacity of the X-ray tube, and high quality wireless flat panel detector, meet the needs of full-body photography.
  • ModelYSX500MG
  • BrandYsenmed
  • PriceContact us for price
  • MOQ1
  • Ship FromGuangzhou, Shenzhen, China
  • ShippingAir/Sea
  • Share:
    Description Get Price Review(0)


    Product Specification

    50kW high power & high voltage generator,large heat capacity of X-ray tube and high quality wireless flat panel detector, meet the needs of full-body photography.



    21.5 inch big size touch screen, ultra-narrow border design and wide field of vision enhance display effect.



    Equipped with dynamic lithium battery, which has advantages of greatly shortened charging time, more exposure and  increased battery service life.



    Main Components

    Technical Specifications

    Flat Panel Detector

    X-ray Sensitive Area

    14x 17/17x17inch



    Generator

    Standard Power

    50kW/45kW

    kVp Range

    40-150kVp

    mA Range

    10~ 630mA .

    mAs Range

    0.1~360mAs

    X-ray Tube

    Anode Heat Content

    150/300kHU







    Physical Specification



    Weight

    380kg

    Height

    184cm

    Width

    55cm

    Column Rotation Range

    ±315°

    Tube Tilting Angle

    ±180°

    Tube Vertical Rotation Angle

    -30°~ +90°

    Telescopic Arm Length Range

    730~ 1250mm

    SID

    610~ 1830mm
